Description

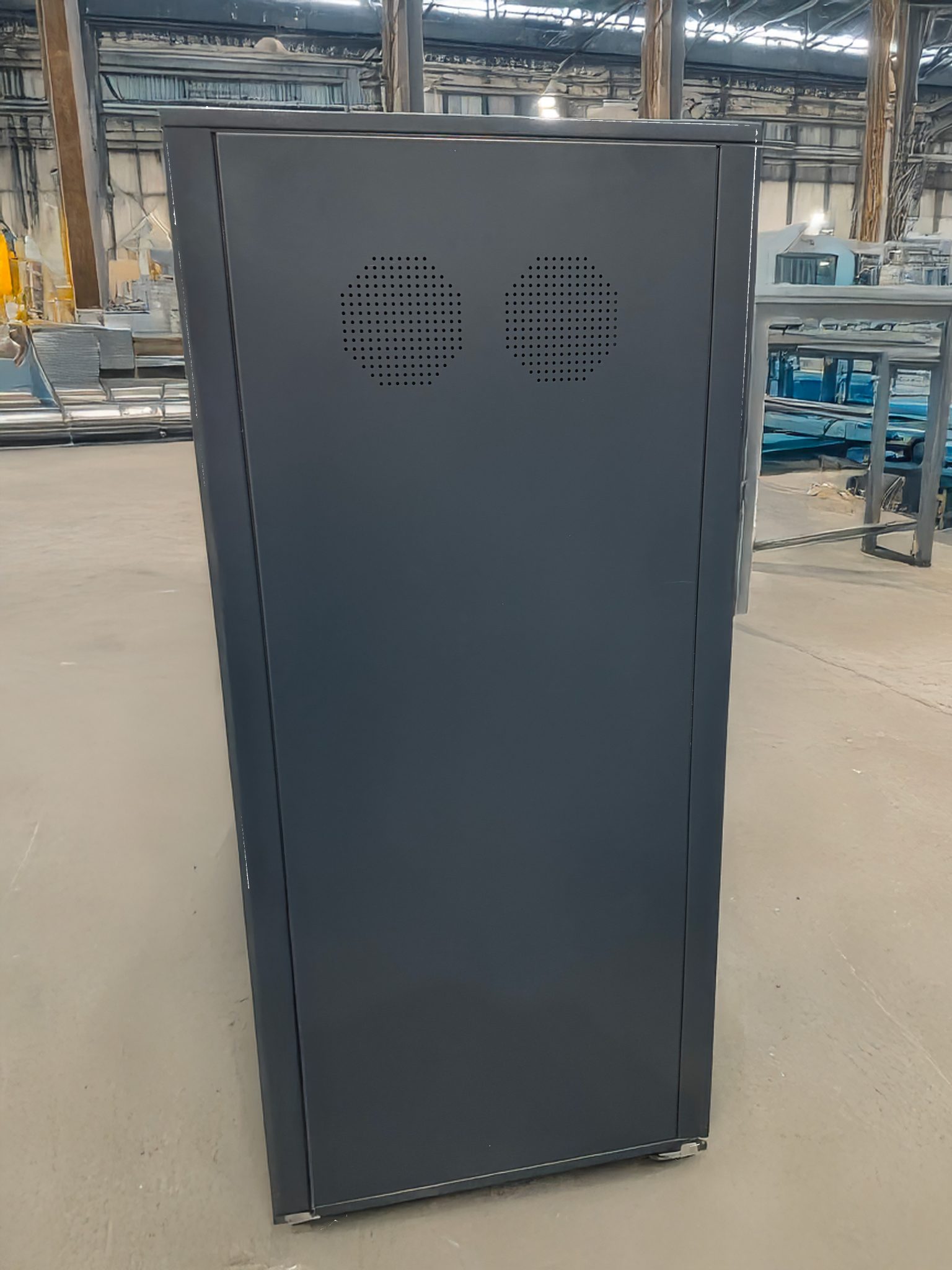

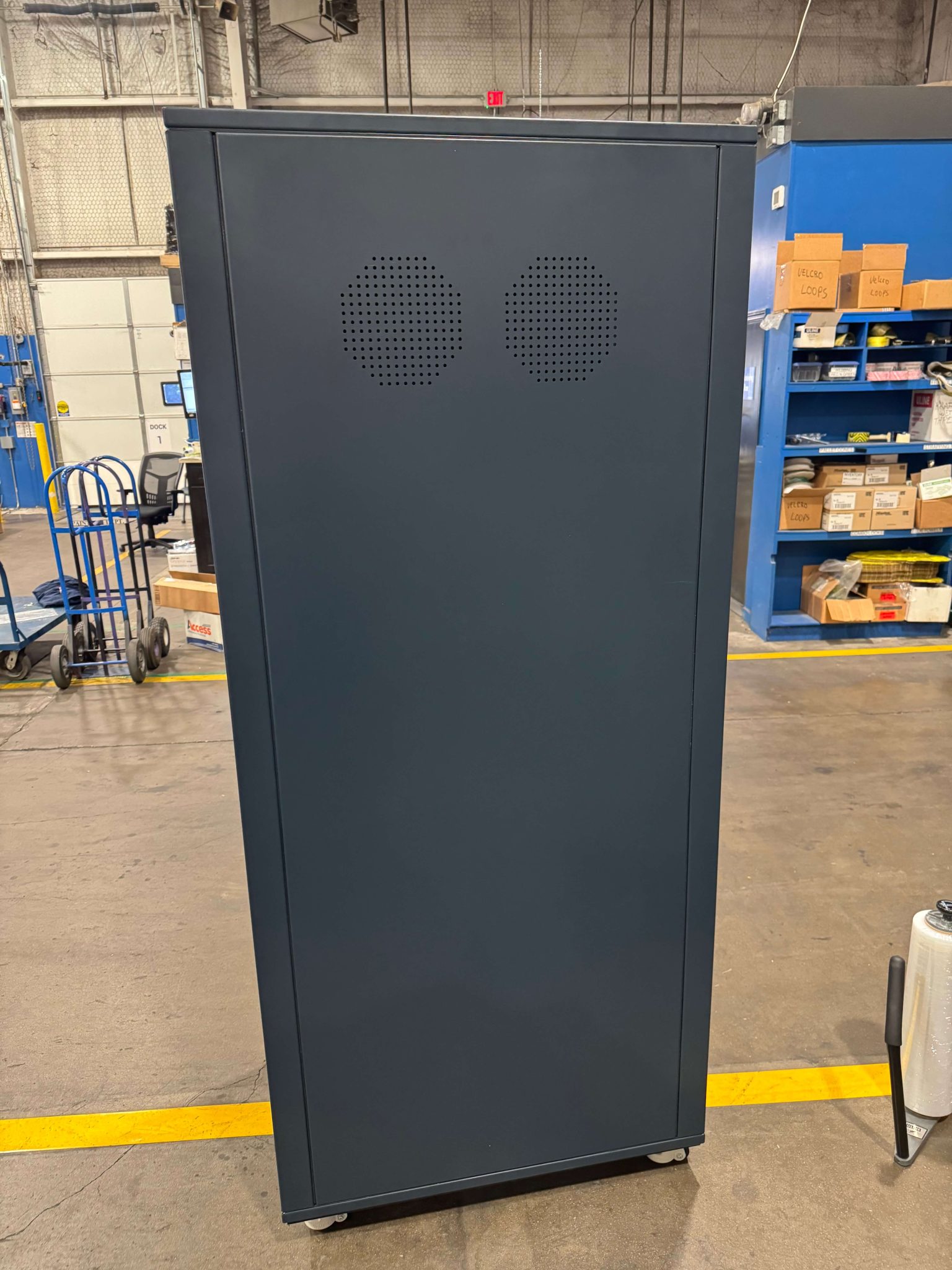

The ThermalVault Fire-proof Lithium Battery Storage Cabinet is Americase’s compact, mobile, and compliant storage solution designed to protect people, property, and facilities from lithium-ion battery thermal-runaway events. Built with our proven fire-mitigation technology and expertise, it offers a cost-efficient, easy-to-use, and sustainable alternative to non-approved or costly storage methods.
Ideal for corporate settings, retail stores, repair shops, service centers, offices, and home garages, ThermalVault provides affordable, eco-friendly, and user-friendly protection for lithium-ion batteries up to 13 kWh. With optional add-ons like monitoring, smoke/temperature alarms, or Stat-X fire suppression, it’s a versatile solution that makes lithium battery safety simple and reliable.
Dimensions: 77”H × 35”W × 23”D (exterior) | 75”H × 30”W × 19”D (interior).
Capacity: Up to 13,000 Watt-hours (13 kWh) at full charge (targeted).
Construction: Double-walled steel with Frax ceramic insulation. Stainless steel hinges and latches.

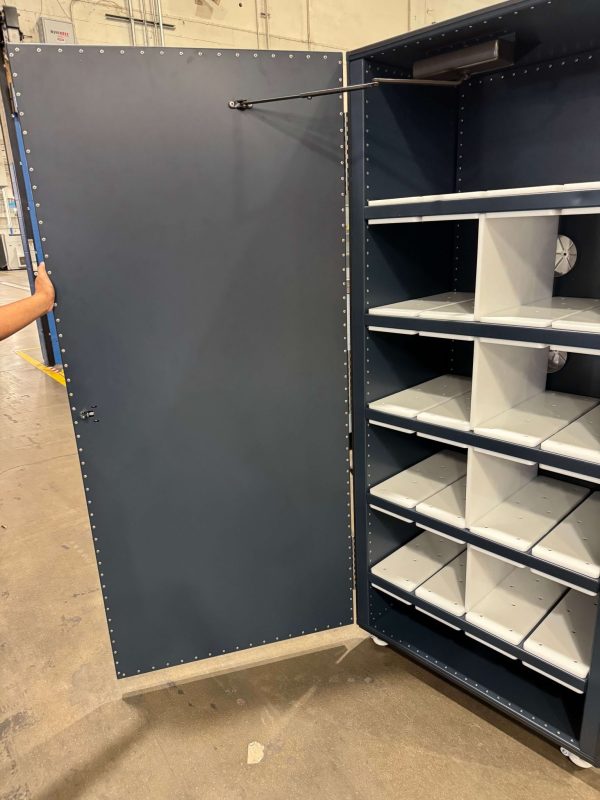

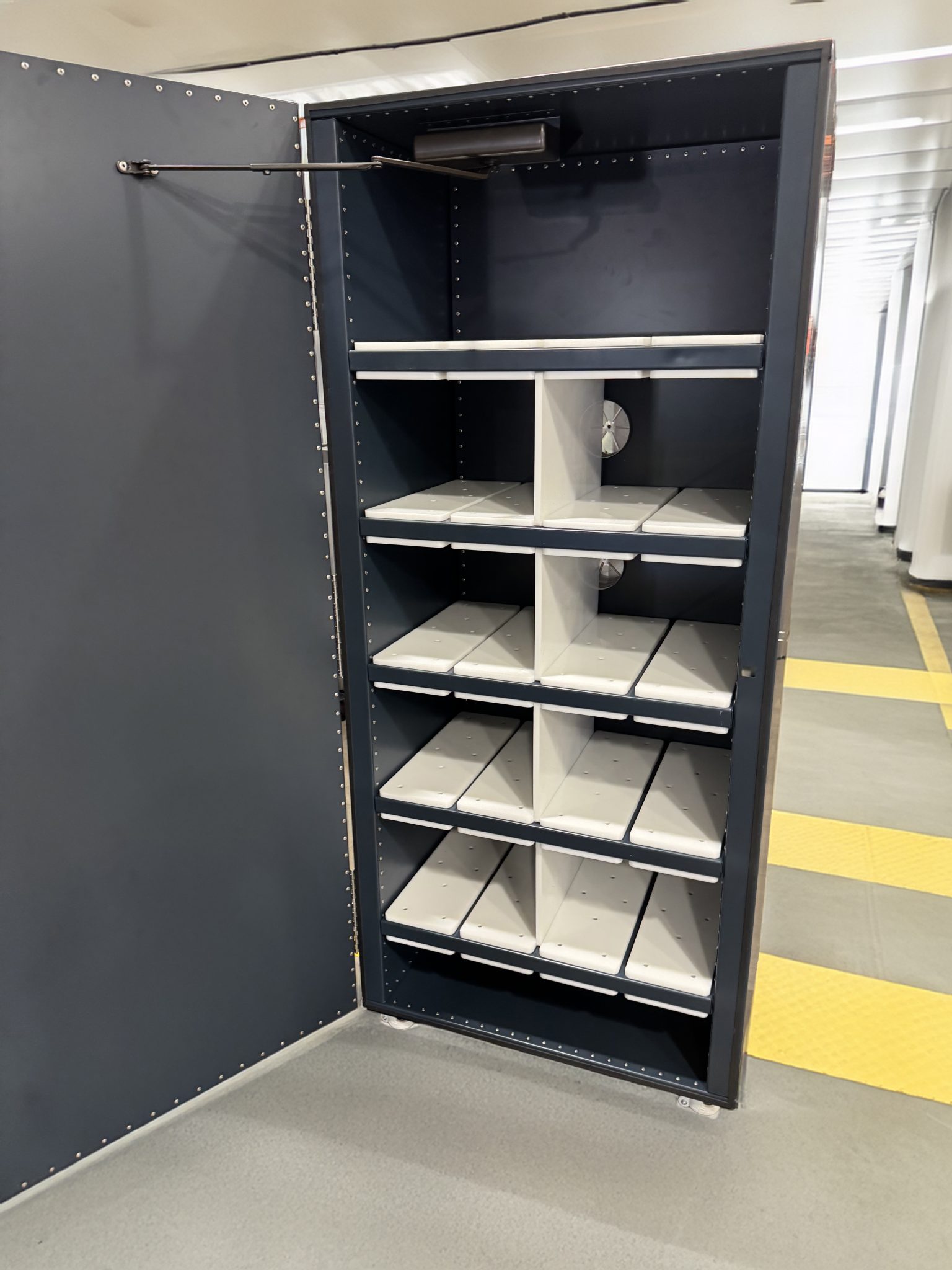

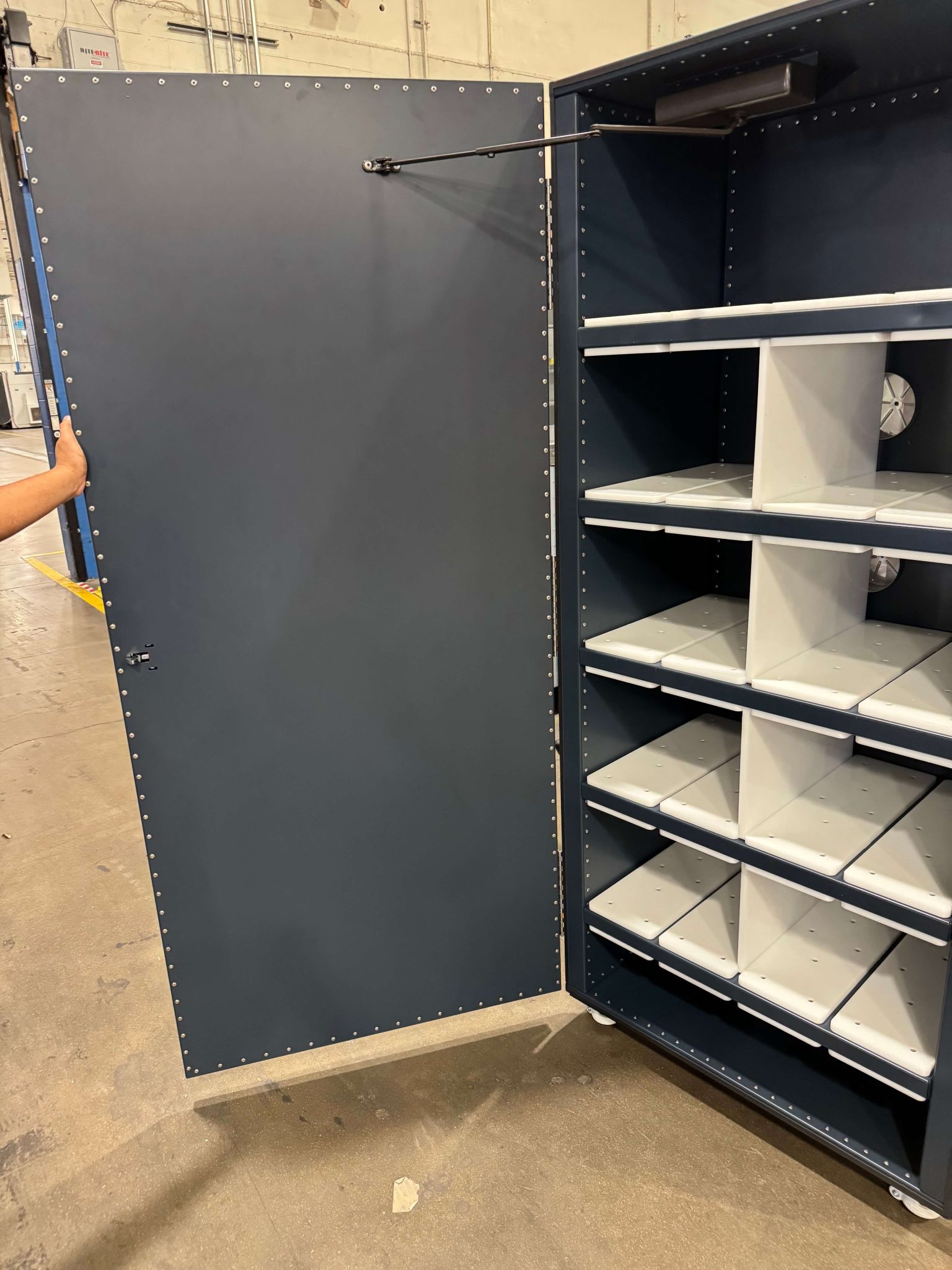

Shelves: Five steel shelves coated with high density polyethylene (HDPE). Shelves can be customized to your specific needs.
Dividers: Adjustable HDPE thermal barriers designed to block propagation inside the cabinet. Can be customized and resized to accommodate different battery sizes.

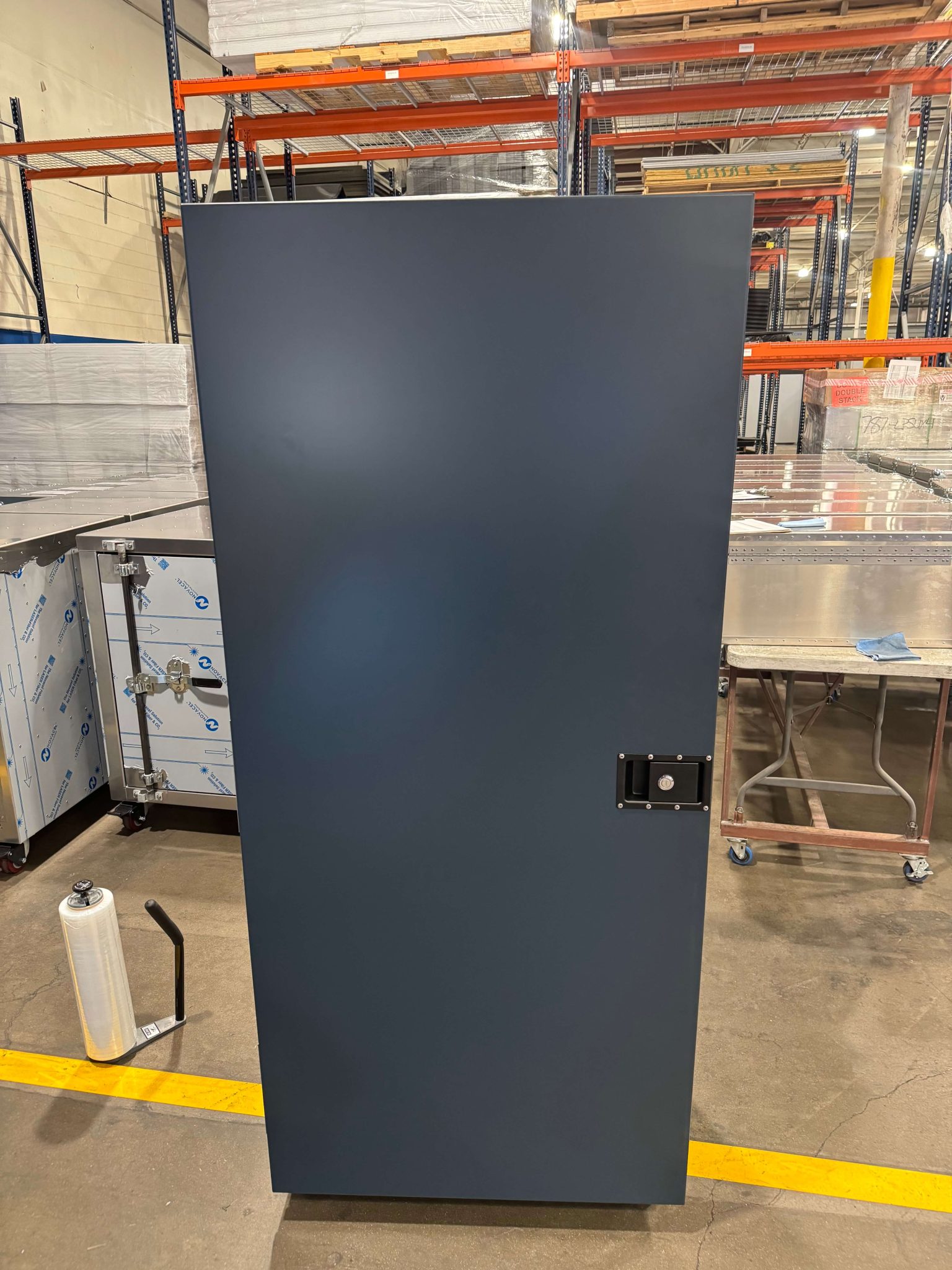

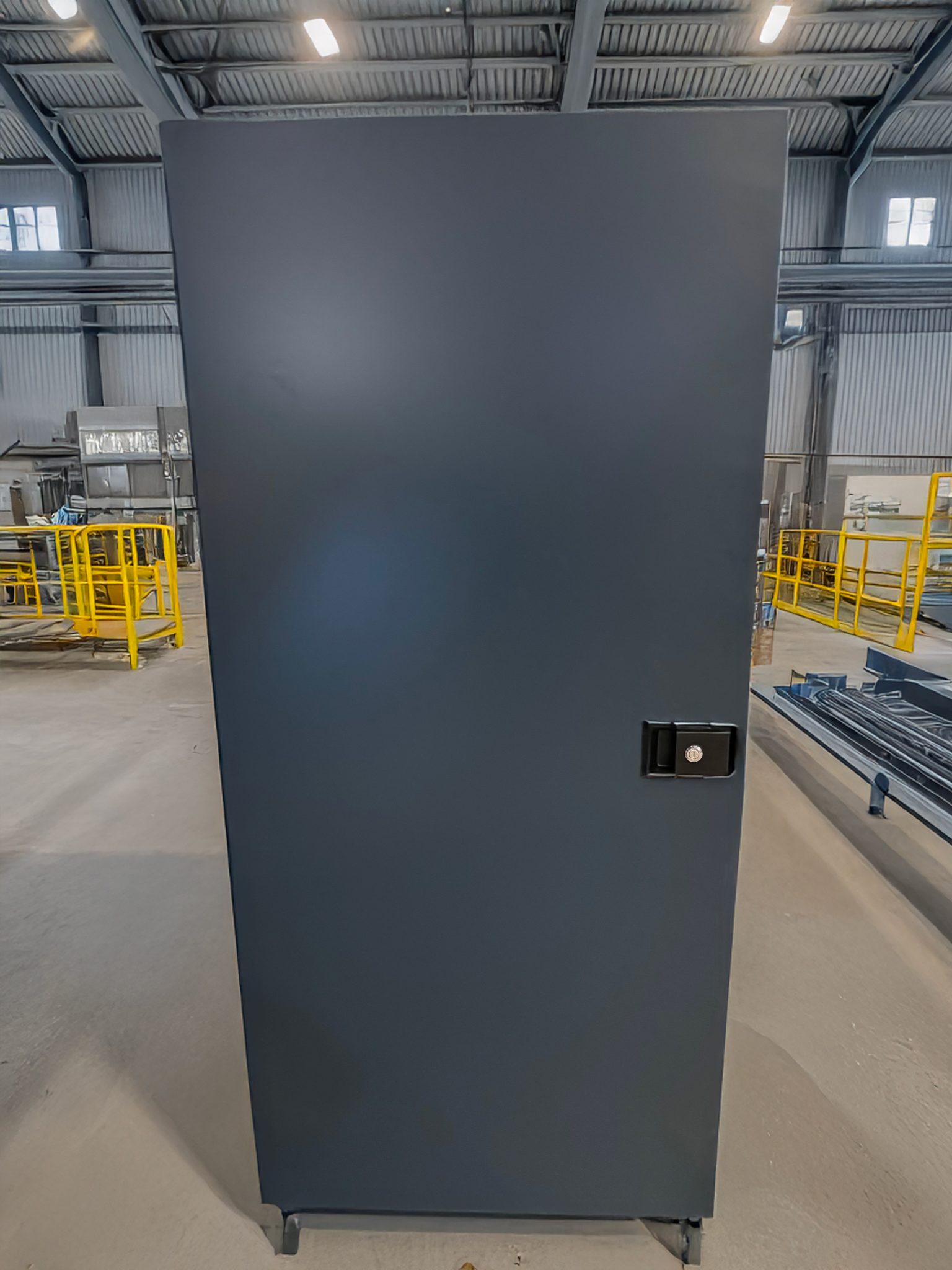

Door: Self-closing and latching for fire containment.
Mobility: Casters with leveling feet.
Optional Features: Stat-X fire suppression, smoke/temperature alarms, HVAC integration.
Sustainability: 100% recyclable and can be made with 100% recycled materials.
Compliance Goal: SAE J3303 (in development).
US-Made: Manufactured domestically in-house for shorter lead times and consistent regulatory alignment
Advanced Fire Containment: A tri-weave stainless steel mesh system slows down gases escape while keeping the flames fully contained inside—protecting personnel and facilities. Up to 13 kWh capacity!
Superior Thermal Insulation: A Frax ceramic layer between double steel walls ensures the cabinet exterior remains below 200 °C, safeguarding nearby materials and infrastructure.
Automatic Fire Protection: Self-closing, self-latching doors immediately seal the cabinet, keeping the fire from escaping into the facility.
Flexible & Configurable Storage: Resizable dividers and customizable shelves allow safe storage of various lithium battery sizes – from e-bikes to tool packs – simplifying facility organization, compliance, and redeployment. Up to 13 kWh capacity.
Eco-Conscious Design: Entire cabinet—including HDPE-coated steel shelves and dividers—is 100% recyclable and can be manufactured from 100% recycled materials, minimizing environmental impact.
Optional Monitoring & Suppression: Enhance safety and peace of mind with Stat-X fire suppression, smoke and temperature sensors, and integration into facility HVAC systems for smoke removal.
Customizable Appearance & Build: Available in tailored sizes, colors, and branded finishes, ensuring the cabinet fits both operational and corporate requirements.
Durable & Easy to Deploy: U.S.-made with stainless steel hinges, latches, and robust construction for long-term performance and shorter lead times. Casters with leveling feet enable fast plug-and-play setup.
Cost-Effective Safety: Provides a simpler, more affordable alternative to fire-rated DG rooms or expensive competitor products, while offering higher watt-hour ratings and faster delivery.
Everyday Compliance and Confidence: Designed for corporate facilities, retail stores, repair shops, service centers, offices, and even home garages, ThermalVault brings professional-grade containment into accessible, everyday use.
